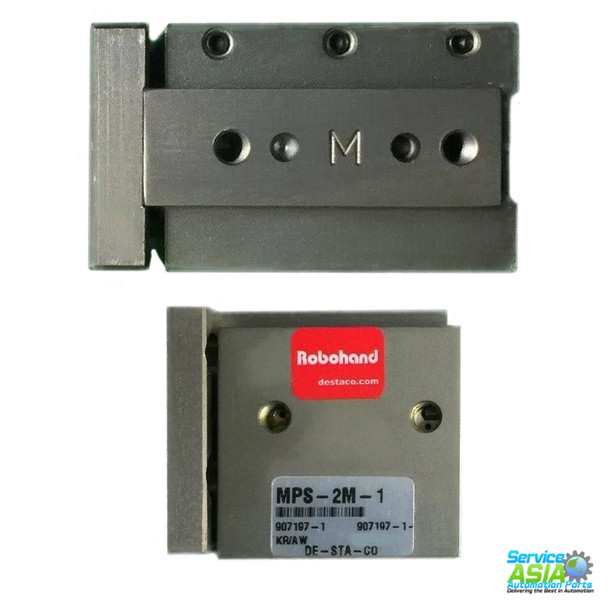

DE-STA-CO MPS-2M-1 MINIATURE DUAL-V ROLLER BEARING SLIDE – MPS SERIES
- Built-in air cylinder
- Preloaded Dual "V" roller bearings eliminate side play for excellent part position repeatability
- Extremely small size
| Imperial or Metric Product | Metric Version |
| Force (lb) | 44 |
| Stroke (in) | 0.500 |
| Payload (lb) | 0.5 |
| Cylinder Bore (in) | .75 |
| Thrust Force (lbsf) | 44 |
| Power Max (Watts) | 13 |
| Max Stroke (in) | 0.50 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 120°C (-20° to 250°F) |
| Actuation Time per 25 mm (1.00") of travel (sec) (Sec) | 0.12 |
| Linear Accuracy per 1" travel (±in) | 0.001 |
| Direct Connect | Yes |
| Special Feature | Zero Side Play |
| Weight (lb) | 0.26 |
| Product Series Description | Rail |
| Product Function | Linear Positioning |
| Product Family | Thrusters / Slides |
| Product Group | ball rail slides |
New - These products are brand new in box, sealed where applicable. Units are covered by original equipment manufacturer (OEM) warranty as applicable.
